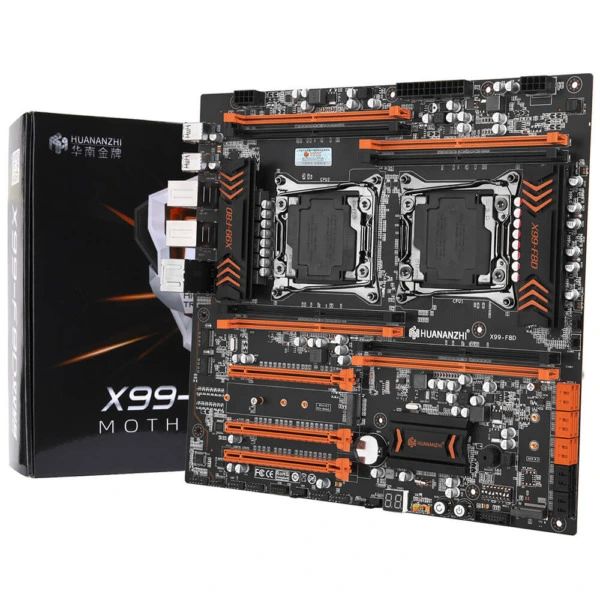

Bo mạch chủ Huananzhi X99 DUAL F8D DDR4
3,990,000₫
- Tình trạng: Mới 100%
- Bảo hành: 12 tháng.
- Xuất xứ: Chính hãng.
- Thương hiệu: Huananzhi
- Support Intel® 2011-3 Processors
- 8xDDR4 Memory Slot, DDR4 2400/2133/1866 MHz
- Support NON-ECC/REG ECC/ECC memory
- M.2 NVME +M.2 NGFF interface
- 12 layer PCB，6+6Phases power supply
- 6 x USB 3.0 port(s) (4 at back panel, 2 at mid-board),4 x USB 2.0 port(s)
- 10*SATA 3.0 interface
- 3*PCIe 3.0/2.0 x16 (x16 mode)
- RJ45 Gigabit Ethernet Card*2
| Mainboard | HUANANZHI X99-F8D |
| Platform | Intel® X99, 2 x LGA2011-3 Non supports: Core™ Processor and Xeon® E5-16XX v3 series. |
| Memory | 8 x DIMM, Max. 8 x 32GB, DDR4 2400/2133/1866/1600 MHz, Supports ECC or non-ECC Memory, 4 Channel Memory Architecture |
| Graphic | No display output port Supports NVIDIA® and AMD® Graphics Cards |
| Audio | Realtek® ALC887 7.1-Channel, High Definition Audio CODEC |
| LAN | Realtek® RTL8111H, 2 x 10/100/1000 Mbit LAN Controller(s) |
| Expansion Slots | 3 x PCIe 3.0 x16 |
| Storage | 10 x SATA3.0 (6GB/s) port(s) 1 x M.2 Socket 3, NVMe 1 x M.2 Socket 2, SATA |
| Internal I/O Ports | 2 x USB 2.0 connector support additional 2 x USB 2.0 port(s) 1 x USB 3.0 connector support additional 2 x USB 3.0 port(s) 2 x CPU Fan connector(s) (1 x 4-pin) (1 x 4-pin) 4 x Chassis Fan connector(s) (1 x 4-pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x POST codes display LED |
| Back I/O Ports | 1 x PS/2 Keyboard and Mouse port 2 x LAN (RJ45) port(s) 4 x USB 2.0 4 x USB 3.0 6 x Audio jack(s) |
| Form Factor | Extended ATX Form Factor; 30cm x 32cm |
| Packing list | 2 x SATA Cable, 1 x Manual |
